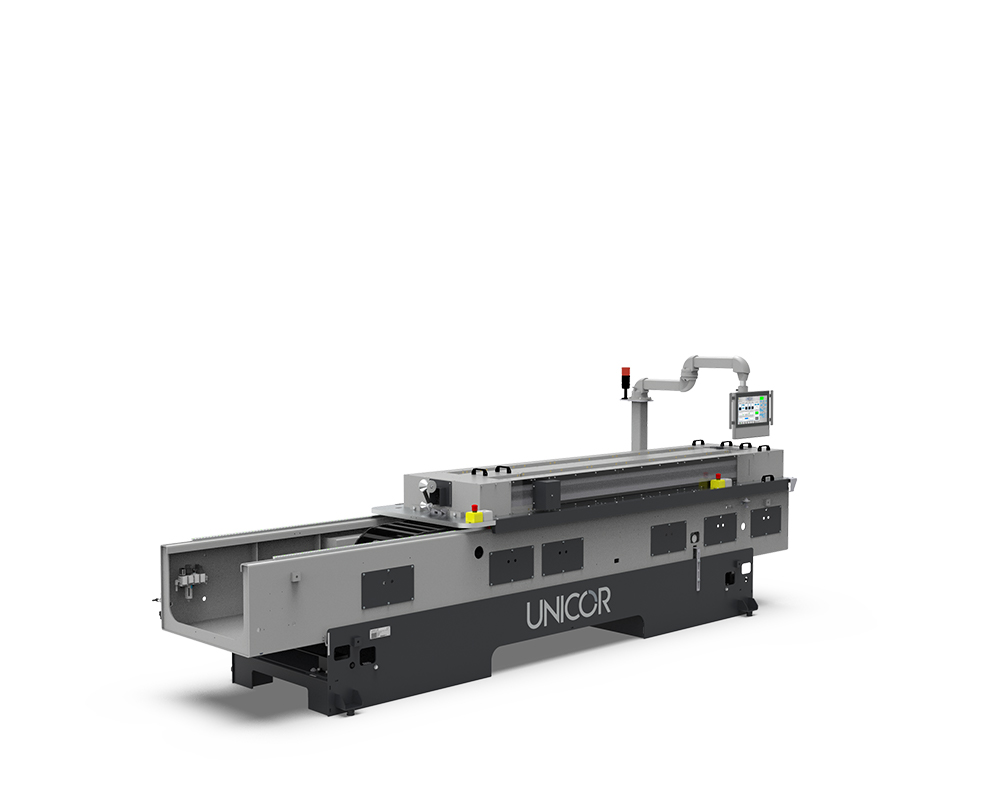

UC 90

The multi talent

fast - efficient - versatile

The uniform operating concept for small corrugators guarantees an optimal utilisation of the corrugators and the production staff.

Thanks to the forward-looking machine concept, the cooling capacity can be increased quick and easy.

Due to the new mold geometry and optimized cooling, maximum cooling performance is achieved.

Perfected quality of the end product due to precisely manufactured
mold blocks and mold block guidance.
Narrow curve radius, short dies, low back pressure and higher throughput provide more efficiency and flexibility, also concerning the choice of material.

  • Each corrugation can be supplied individually with vacuum
  • Duo molds with vacuum available
  • Free positioning of vacuum holes for mold blocks possible
  • Easy retrofit of an overpressure corrugator to vacuum forming process
  • The unique mold block design increases the effective cooling surface
  • Max. cooling by cooling in the curve section (Outlet)
  • Highly efficient coolant guidance in the medium and return channel of the corrugator
  • Control panel can be positioned ergonomically using the swivel arm
  • Excellent overview of the process parameters on the 15″ operating panel
  • Easy accessibility to the main machine components
  • Electronic control of process air
  • Measurement of all vacuum parameters
  • Measurement of water inlet and outlet pressures
  • Electrical control of mold temperature

Indirect cooling concept – UNICOOL

The continuously indirectly cooled mold blocks, made of specially hardened steel, allow for the production of a high quality pipe right from the start-up.

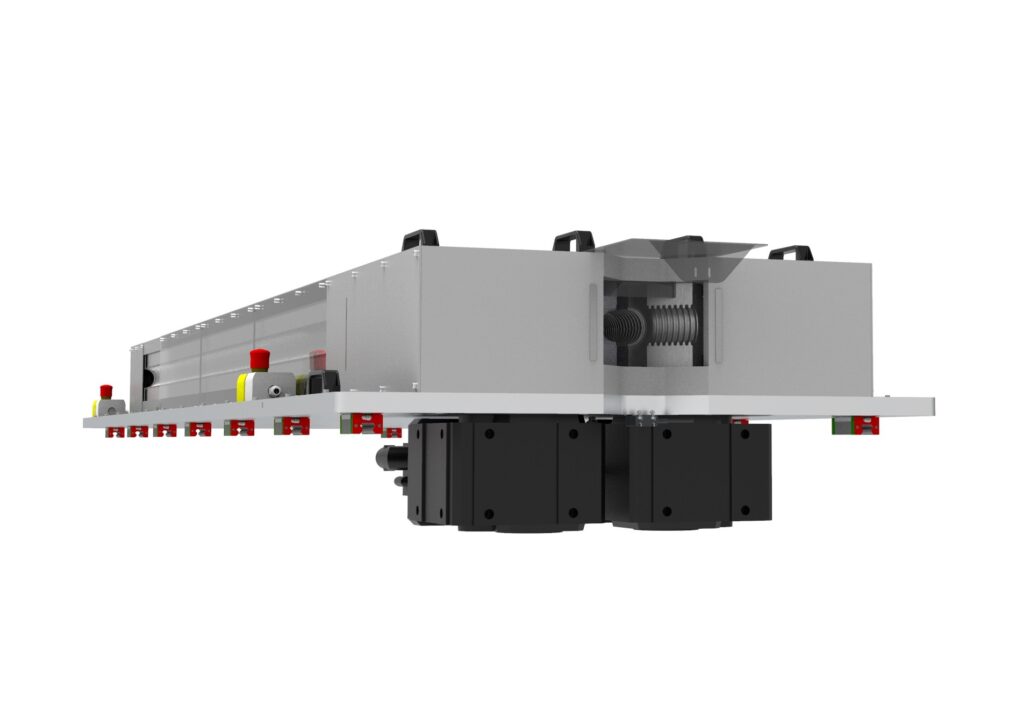

Drive unit

By using two synchronised servo motors the mold block pairs can be alligned exactly with each other.


Conduit systems buried underground

Due to the narrow curve section and the innovative short die technology, even smallest double wall diameters of 20 mm inside dimension can be produced economically.

Drainage pipes

Drainage pipes with best static properties for sustainable infrastructure projects in fields, roads, squares and buildings. The UNICOR die heads ensure homogeneous material distribution and produce corrugated pipes with minimal differences in wall thickness.

Core tube and ventilation pipe

Special shapes in the field of corrugated pipes, such as ventilation pipes for house ventilation and core tubes for spiral wound pipes can also be efficiently produced on this corrugator.
