UC 65
The all-rounder
precise - flexible - versatile

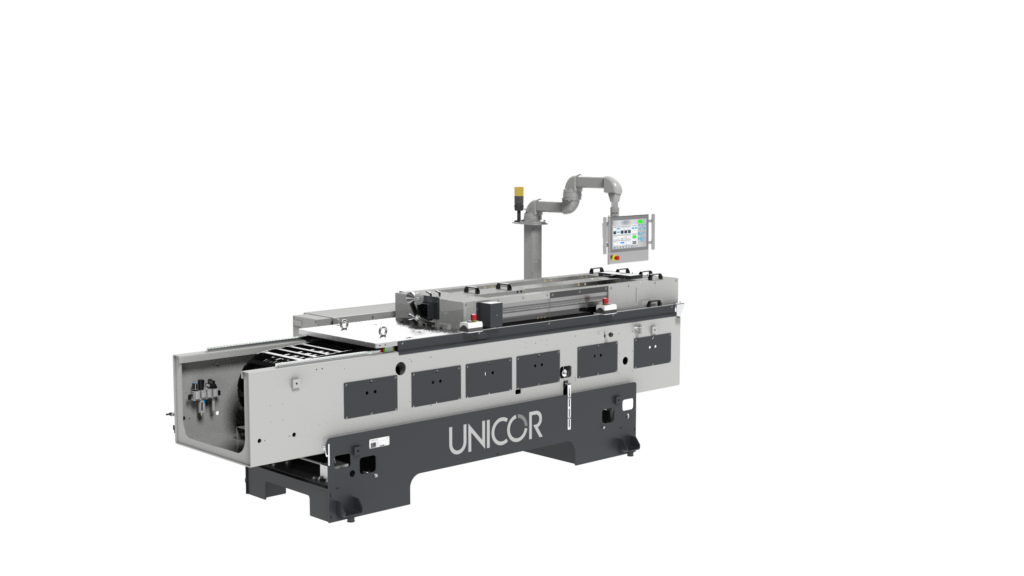

The UC 65 sets new standards in small-diameter corrugated pipe production. With nominal diameters up to 65 mm, it delivers high output, perfect roundness and reliable quality. It‘s innovative UNICOOL system and synchronized dual-drive ensure precise pipes and maximum efficiency.
Indirect cooling concept – UNICOOL
The continuously indirectly cooled mold blocks, made of specially hardened steel, allow for the production of a high quality pipe right from the start-up.
Drive unit
By using two synchronised servo motors the mold block pairs can be alligned exactly with each other.
The uniform operating concept for small corrugators guarantees an optimal utilisation of the corrugators and the production staff. The new innovative design allows improved accessibility to relevant components.
Thanks to the forward-looking machine concept, the cooling capacity can be increased quick and easy.
The unique mold block design increases the effective cooling surface Max. cooling by cooling in the curve section (Outlet) Highly efficient coolant guidance in the medium and return channel of the corrugator.
Perfected quality of the end product due to precisely manufactured
mold blocks and mold block guidance.
Narrow curve radius, short dies, low back pressure and higher throughput provide more efficiency and flexibility, also concerning the choice of material.
- Each corrugation can be supplied individually with vacuum
- Duo molds with vacuum available
- Free positioning of vacuum holes for mold blocks possible
- Easy retrofit of an overpressure corrugator to vacuum forming process
- The unique mold block design increases the effective cooling surface
- Max. cooling by cooling in the curve section (Outlet)
- Highly efficient coolant guidance in the medium and return channel of the corrugator
- Control panel can be positioned ergonomically using the swivel arm
- Excellent overview of the process parameters on the 15″ operating panel
- Easy accessibility to the main machine components
- Electronic control of process air
- Measurement of all vacuum parameters
- Measurement of water inlet and outlet pressures
- Electrical control of mold temperature
Applications
Conduit systems buried underground
Due to the narrow curve section and the innovative short die technology, even smallest double wall diameters of 20 mm inside dimension can be produced economically.
Electrical conduit
Efficient production of electrical conduits, which are used to protect and route electrical cables in a building or structure, is one of the most common application for the UC 65.
Pre-wired
Pre-wired corrugated conduits, which contain different cabels are time and workforce saving for installation. The cables and wires are unwound and fed from coils during inline pipe production using a special feeding process.
